Velux™ 4 1050/1550
SKU: 90256X

Velux™ 4 is an extremely rugged, low cost Short Wave Infrared Marker Beacon available in either 1050nm (902560) or 1550nm (902561) configurations.

DESCRIPTION

Velux™ 4 is an extremely rugged, low cost Short Wave Infrared Marker Beacon available in either 1050nm (902560) or 1550nm (902561) configurations.

The Velux™ 4 Beacon only emits Short Wave Infrared (SWIR) signals making it invisible to Near IR (PVS, ANVIS) Night Vision Equipment and Mid and Long Wavelength Thermal Viewers. The Velux™ 4 can only bee seen with SWIR and InGaAs Cameras making it ideal for ID marking during hi-risk missions where the most covert operation is essential.

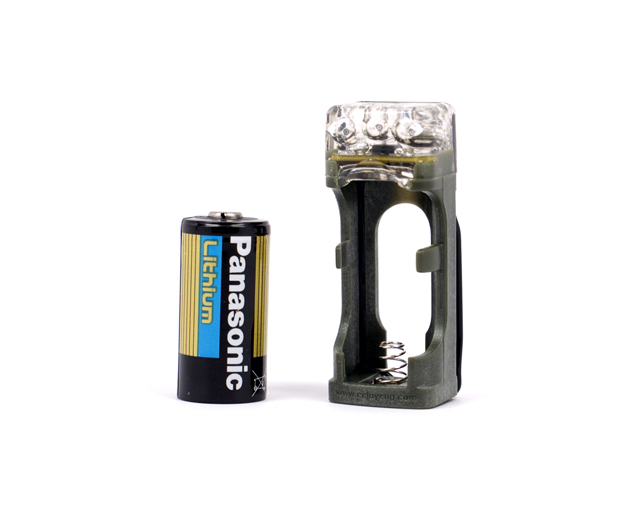

Designed to use a CR123 Battery, the Velux™ 4 is 50% smaller and lighter than the Phoenix JR™ Near IR Beacon. When not in use, the CR123 battery can be stored within the unit by installing the battery upside-down. The Velux™ 4 has been equipped with a spring clip for easy attachment to belts, straps, clothing and equipment.

SPECIFICATIONS

Weight: 10 grams | 0.35 ounces (without battery)
Size: 2.18" x 0.84" x 0.70" | 55mm x 21mm x 18mm
Flash repeat cycle: 1.3 Seconds (fixed)
Flash duration: 20 Milliseconds (fixed)
Battery: CR123 Lithium
Configuration: 3 Light Emitting Diodes (LED) at 1050nm or 1550nm
Coverage: 240 degrees x 360 degrees
Switch On: Install battery with correct polarity
Switch Off: Remove battery
Battery Storage: Install with reverse polarity
Environmental: Water Resistant / Temp -30C to 50C
Options: Velux™ 4 1050nm (902560), Velux™ 4 1550nm (902561)

Product Datasheet: pdf Velux™ 4 (220 KB)
